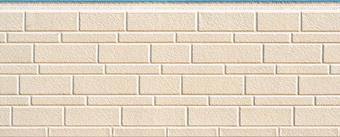

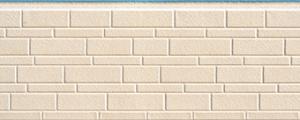

Hanyi facade panel

Hanyi Facade Panel is used in applications for energy-conservation as well as for exterior wall decoration and insulation. Such as: Mansion, villa, hotel, stadium, old building renovation etc.

There are 8 styles and over 100 colors for you to choose from, we can also manufacture the style and color according to your need.

1). Structure: It consists of three layers: the top layer is aluminum zinc-coated metal board, the core material is polyurethane foaming, and the last layer is glass fiber paper. The three layers are formed together by robot equipment under high temperature , which is different from other similar product. So we guarantee the quality of Hanyi Panel for over 45 years.

2). Dimensions: Thickness: 16mm; width: 380mm length: 3000-6000mm (standard length 3800). If you think the thickness is not enough for insulation, we can insert thicker insulated material between the wall and Hanyi Panel.

3 ). Package: Package Size:3840x420x140mm Package Quantity: 8 pieces/carton .

Unit Weight: 3.7kg/m2. Gross Weight: 45kg/carton .

1x40HQ:3500m2 1X20GP : 1000m2
